Application:

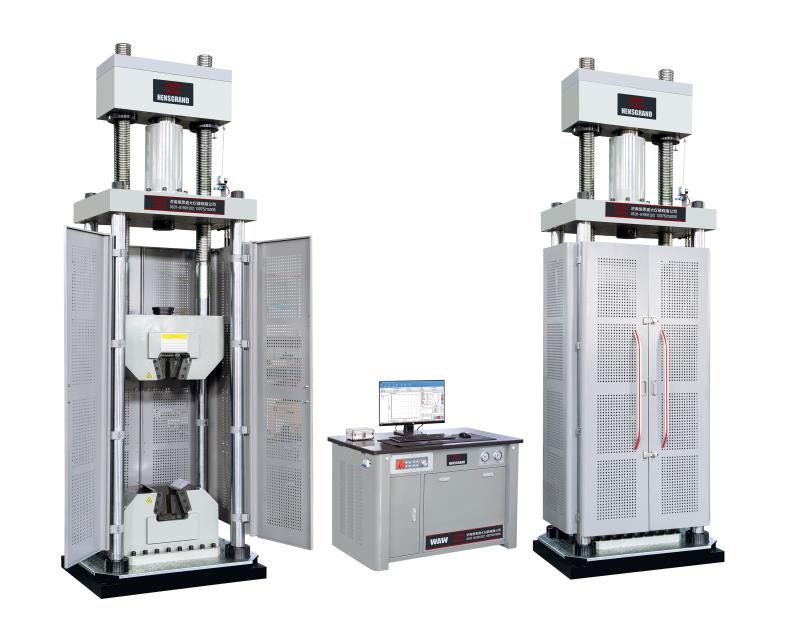

The machine adopts hydraulic loading, Computer Display, easy and convenient to operate. It is mainly used to execute the tension, compression, bending, flexural etc. test for metal materials. Attached with simple accessories and devices, it can be used to test wood, concrete, cement, rubber, and so on.It is very suitable for making test to different metal or nonmetal materials under high toughness and hardness against extreme big loading force.

Standards:

ISO6892, BS4449,ASTM C39,ISO75001, ASTM A370, ASTM E4, ASTM E8 and BSEN standards.

Specifications:

Model	WAW-2000D
Structure	4 columns and 2 screws
Control way	Constant stress uniform deformation constant displacement three closed loop control and program control dealing
Max.load (kN)	2000kN
Load accuracy	≤±1%
Load range	2%-100%FS
Load resolution	1/300000
Deformation Measurement Range	2%～100%FS
Deformation accuracy	≤±1%
Displacement resolution (mm)	0.01
Displacement error	≤±0.5%
Max.piston stroke(mm)	250
Max piston moving speed	0-90mm/min  stepless speed adjusting
Crosshead lifting speed	200mm/min
Max. tension test space	850mm (can customize)
Max.Compression Test Space	650mm (can customize)
Clamping method	Hydraulic clamp
Round specimen clamping range (mm)	Φ12-Φ30mm, Φ30-Φ50mm, Φ50-Φ70mm
Flat specimen clamping range (mm)	0-35 mm
Flat specimen clamping width(mm)	80
Compression plate size (mm)	φ160
Bending roller distance(mm)	450
Width of bending rollers (mm)	120
Power supply	3-phase,AC380V, 50Hz（can be customized）
